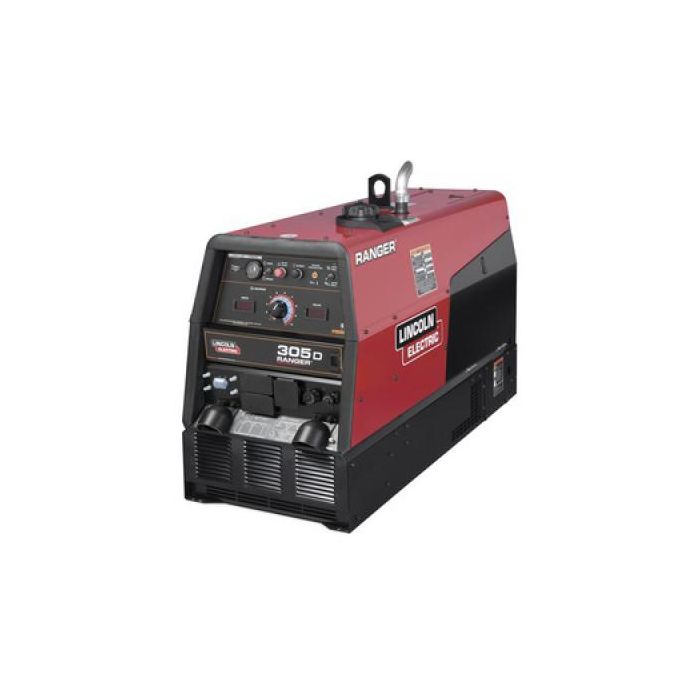

Lincoln Electric K1727-4 RANGER® 305 D EPA TIER 4 FINAL ENGINE DRIVEN WELDER (KUBOTA)

Features

• Choose the Ranger® 305 D for extended fuel efficiency and compatibility with diesel-powered fleets. The 305 D is equipped with a 10,000-watt single-phase AC generator that powers motor starting, tools and inverter welders for extended range and process capability. Meets all EPA Tier 4 requirements.
• Digital weld meters to monitor actual welding output
• Arc force control for a soft or more forceful digging arc
• Built-in “hot” start for easier starts and restrikes
• Multi-Process Welding
• • Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas).
• • Only compact gasoline welder in North America rated at 29V for 300 amps of stick or CV welding.
• • CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.
• Digital Weld Meters
• • Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.
• Superior Arc Performance
• • Lincoln Electric Chopper Technology® – provides easy starts, a smooth arc, low spatter and excellent bead appearance.
• 10,000 Watts Peak Single-Phase AC Generator Power
• • 10,000 watts peak for motor starting.
• • 9,500 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric Invertec® inverter welder. Also use for lights, a grinder or other power tools.
• • AC generator voltage is constant at 120V or 240V at any weld dial setting.
• Skewed Rotor Design
• • Skewed rotor design provides AC power suitable for operating Lincoln Electric inverter power sources.
• Rugged Reliability
• • Welding and AC Generator Outputs rated at 104ºF (40ºC).
• 18.8 HP Kubota® Diesel Engine
• • Water-cooled for low noise.
