The Square Wave® TIG 200 is a portable TIG and stick welding machine that lets hobbyists, makers, small fabricators and craftsmen explore their creativity.
It is designed to help expand your welding expertise. As your skills and confidence grow, you can take advantage of the Square Wave TIG 200’s additional functionality. No matter your skill level, you won’t be disappointed.
The Square Wave TIG 200 provides smooth and stable AC TIG welding on aluminum and DC TIG welding on steel, stainless steel and chrome-moly.
A user-friendly interface enables the operators to set it, forget it and weld.

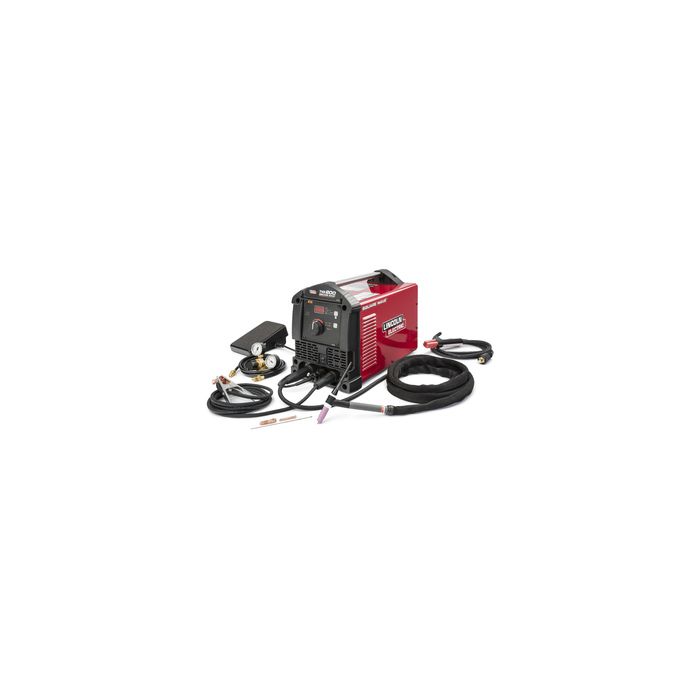

Lincoln Electric K5126-1 Square Wave® TIG 200 TIG Welder (U5126-1)
Used
this item condition is used
Special Order
usually ships within 10-15 business days
$2,599.00
Availability:
Special Order usually ships within 10 - 15 business days
Model No: K5126-1
Website Product ID: 69384
Features
***Does not qualify for any Lincoln Rebate. Product already discounted***
***Please note this unit was a display model. 99.5% brand new. Full warranty***
- A Great TIG Machine for Aluminum - For a wider or tighter welding bead, users can easily adjust AC Frequency Control. AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials.
- TIG and Stick from One Power Source - The multi-process machine can TIG weld when precision and bead appearance are important. Users also have the advantage of stick welding capability for outdoor work or thicker materials.
- Take it Everywhere, Plug in Anywhere.™ - Plug in the Square Wave TIG 200 where you need it – a standard 120V circuit or 230V for maximum output. Portable and convenient to use, only 46 lb (21 kg).
Specifications
- Input Power: 120/230/1/50/60
- Rated Output: 120V - TIG: 125A/25% (AC TIG 110A/25%), TIG: 100A/40%, TIG: 85A/60%, Stick: 75A/20%, Stick: 65A/60%
- 230V- TIG: 200A/25%, TIG: 160A/40%, TIG: 130A/60%, Stick: 170A/20%, Stick: 100A/60%
- Input Current: 120V - TIG: 25% Duty Cycle 21A, TIG: 40% Duty Cycle 17A, TIG: 60% Duty Cycle 14A, Stick: 20% Duty Cycle 19A, Stick: 60% Duty Cycle 16A
- 230V - TIG: 25% Duty Cycle 22A,TIG: 40% Duty Cycle 17A, TIG: 60% Duty Cycle 13A
- Output Range: TIG: 10-125A, Stick: 10-90A
- 230V - TIG: 10-200A, Stick: 10-170A
- Dimensions (H x W x D): 14 in x 10.75 in x 19.25 in (358 mm x 282 mm x 502 mm)
- Net Weight: 46.50 (21.09 kg)
Includes
- PTA-17 TIG Torch Ready-Pak®
- Foot Amptrol™
- Gas Regulator/Flowmeter and 10 ft. (3 m) Gas Hose Kit
- 200A Stick Electrode Holder
- Ground Clamp and Cable
- 120 and 230V Input Cords
